World's First Commercial Liquid Air Plant to Store Wind and Solar Energy
The major predicament of renewable energy, the 'intermittent production' issue, is being resolved with the re-emergence of a half-century-old technology. The world's first commercial-scale liquid air energy storage facility, which is being built in the UK, is gearing up to become operational in the coming months.
As the world rapidly transitions from fossil fuels to clean energy, the need to securely store electricity during times when the sun isn't shining and the wind isn't blowing has reached a critical level.
Although network-scale lithium batteries and pumped hydroelectric power plants currently hold the reins in this field, a rising technology from the UK is poised to upset the balance: Liquid Air Energy Storage (LAES).

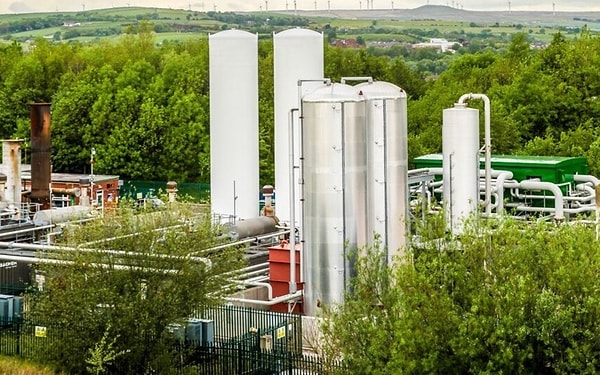

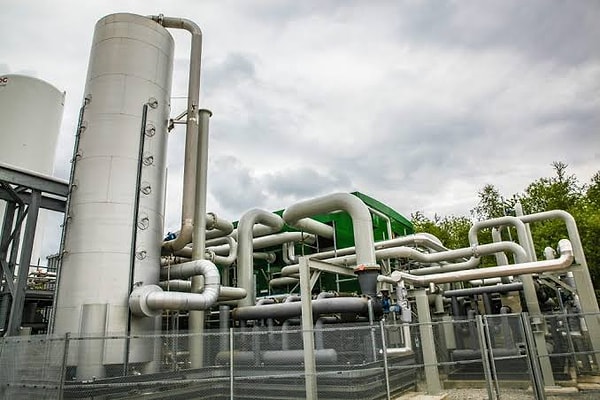

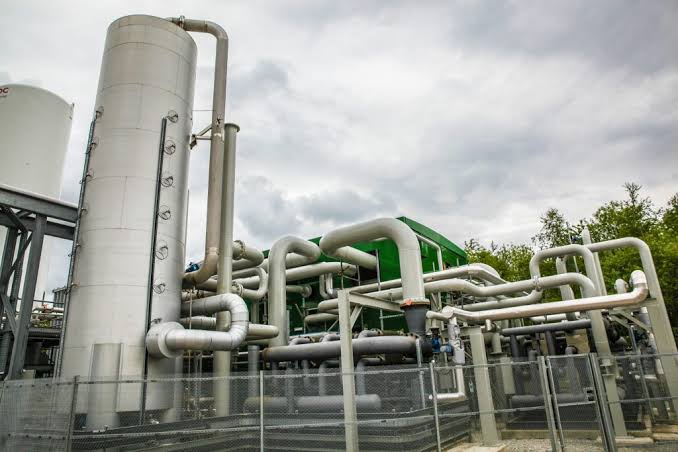

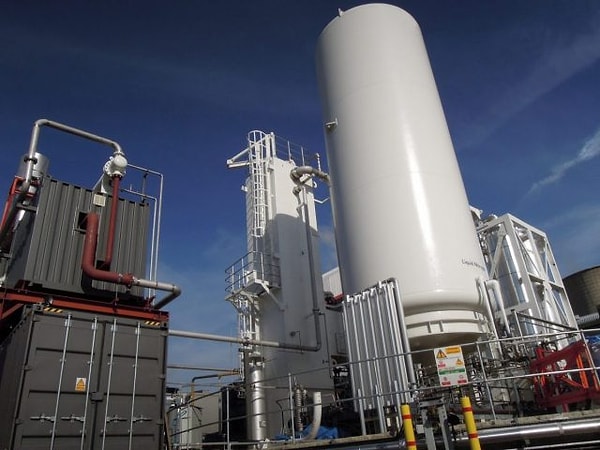

Initially founded in 1977 but overlooked for decades, this technology is becoming a reality near the village of Carrington, close to Manchester in the UK, thanks to the investment of Highview Power. The Carrington project, set to be the world's first commercial-scale liquid air facility, is poised to shape the future of green energy.
The liquid air storage system consists of three fundamental stages.
Compression and Cooling: During periods of abundant renewable energy production (wind and solar), the electricity drawn from the grid is used to extract and purify air from the atmosphere. This air is then subjected to high pressure, compressed, and chilled through specialized heat exchangers until it liquefies, after which it is stored in large tanks.
Heat Recovery: The heat released during the compression process is trapped within the system. According to Shaylin Cetegen, a researcher at MIT (Massachusetts Institute of Technology), these thermal recovery cycles boost the system's efficiency from 50% to nearly 70%.
Electricity Generation: When the demand for energy in the grid increases, the liquefied air stored in tanks is pumped out and re-gasified. This expanding air spins large turbines, generating electricity once again, and is then safely released back into the atmosphere.
Richard Butland, the CEO of Highview Power, announced that the Carrington facility will be brought to life in two stages.
According to the plan, the turbine of the system is set to be commissioned first in August 2026. Rather than generating electricity directly, this turbine will eliminate the need for grid operators to use natural gas power plants to balance fluctuations, thereby preventing billions of lira in costs.
By 2027, it is anticipated that the liquid air storage system will be fully operational. The facility, with a total electric storage capacity of 300 megawatt-hours (MWh), will be powerful enough to meet the short-term electricity needs of 480,000 homes on its own.
Recent research conducted by MIT reveals that liquid air technology is economically far more advantageous compared to other methods.
Based on the 'Leveled Cost of Storage' criterion;
Liquid Air: $45 per Megawatt-hour
Pumped Hydroelectric: $120 per Megawatt-hour
Lithium-Ion Batteries: $175 per Megawatt-hour
Beyond the advantage of lower cost, liquid air stands out as the most flexible energy storage solution for the future, due to the lack of a need for replacement every 10 years like lithium batteries, and not being dependent on a geographical water source like hydroelectric power plants. Moreover, simply adding inexpensive storage tanks is sufficient to increase the system's capacity.
Despite some simulations conducted in the US suggesting that the initial profitability of these facilities is challenging due to the renewable energy ratio in the networks not yet creating sufficient fluctuation, the "cap and floor" policy of the British government, which guarantees a base return to investors, has paved the way for projects.

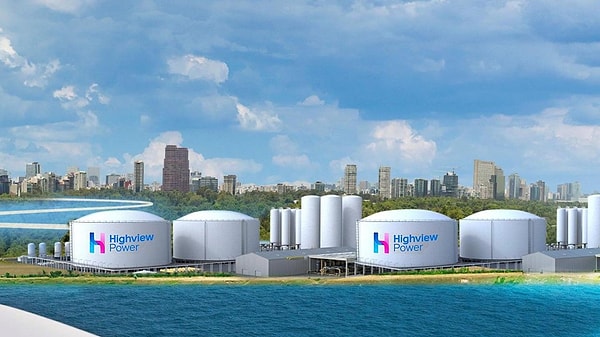

Highview Power, having set its sights on larger projects following Carrington, is planning new facilities in Scotland (Hunterston) and Lincolnshire (Killingholme). The facility in Scotland will be nearly 10 times the size of Carrington, boasting a capacity of 2.5 Gigawatt-hours (GWh). The company's global vision includes opening colossal facilities not only in the UK, but also in the Japanese and Australian markets.
As the world's electricity grids are being rebuilt from scratch amidst the green transformation, the air that humanity breathes appears to be a promising candidate for the cleanest and cheapest massive battery of the future.
